Single-Ply PVC Membrane Roofing Systems
PVC Membrane roofing systems (polyvinyl chloride) are typically referred to as vinyl roofing. The PVC of the roofing system is made up of ethylene and chlorine. This roofing system is designed to be stable, flexible and achieve high tearing and breaking strengths.
The PVC Membrane is made by combining the PVC material with a polyester reinforcement scrim between. Seams are hot-air welded together to ensure a water tight seal during extreme weather conditions.
PVC single-ply roofing membrane is built to have superior durability, longevity and performance. Manufactured to be resistant to UV Radiation, strong winds, fire and chemicals.
Proprietary thermoplastic PVC formulation of resins, plasticizers, stabilizers, biocides, flame retardants, and U.V. absorbents.
Polyester fabric construction with weft insertion, composed of denier threads, provides superior tear and puncture resistance. The polyester thread is treated to prevent wicking.

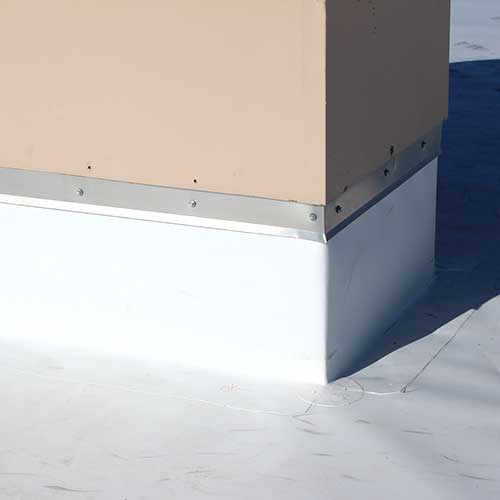

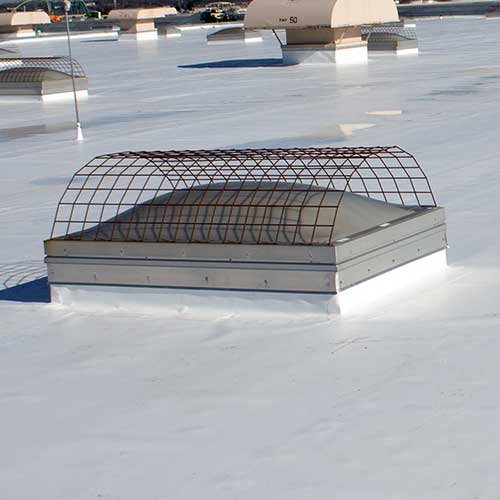

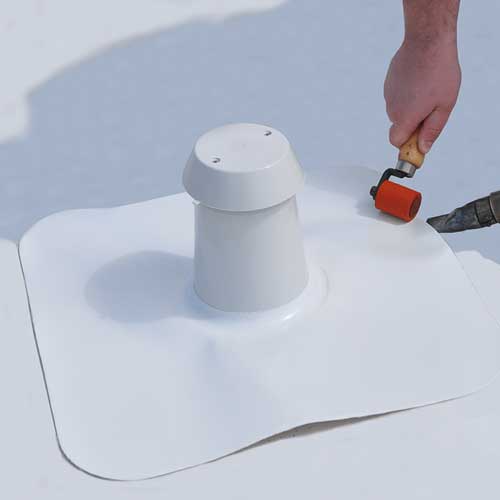

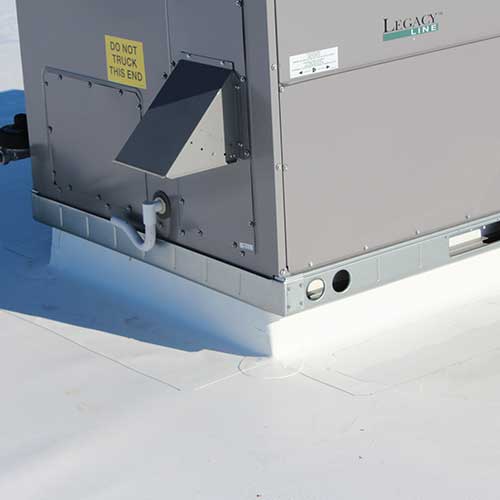

Each component of your roofing system requires a custom fit to ensure a water tight seal. Installation, Repair and Maintenance services available.
Duro-Last® Single Ply Roofing Membrane
Mil | PVC Film Above Scrim | Weight | Scrim | Bottom Color |
---|---|---|---|---|
40 | 17 mil | 0.22 lbs per sq. ft. | 18 x 14 | White, tan, gray, dark gray |
50 | 28 mil | 0.29 lbs per sq. ft. | 18 x 14 | White, tan, gray, dark gray, terra cotta |
60 | 28 mil | 0.36 lbs per sq. ft. | 18 x 14 | White, tan, gray, dark gray |
Duro-Tuff® PVC Roofing Membrane
Mil | PVC Film Above Scrim | Weight | Scrim | Top Color | Bottom Color |
---|---|---|---|---|---|
50 | 26 mil | 0.28 lbs per sq. ft. | 18 x 9 | White * | Gray** |
60 | 31 mil | 0.35 lbs per sq. ft. | 18 x 9 | White * | Gray** |
80 | 41 mil | 0.51 lbs per sq. ft. | 18 x 9 | White * | Gray** |
Duro-Fleece® Roofing Membrane
Mil | PVC Film Above Scrim | Overall Thickness with Fleece | Weight | Scrim | Colors |
---|---|---|---|---|---|
50 | 26 mil | 68 mil | 0.33 lbs per sq. ft. | 18 x 9 | White* |
60 | 31 mil | 78 mil | 0.39 lbs per sq. ft. | 18 x 9 | White* |
80 | 41 mil | 98 mil | 0.53 lbs per sq. ft. | 18 x 9 | White* |
